Zoom Series
This series of lenses can adjust the spot size, spot uniformity, and low UGR value;
This series of products has excellent anti-glare treatment, low UGR value and less
shading angle.
It is suitable for museums, high-end fresh foods and other lamps that require focus
adjustment, intelligent dimming, and anti-glare.

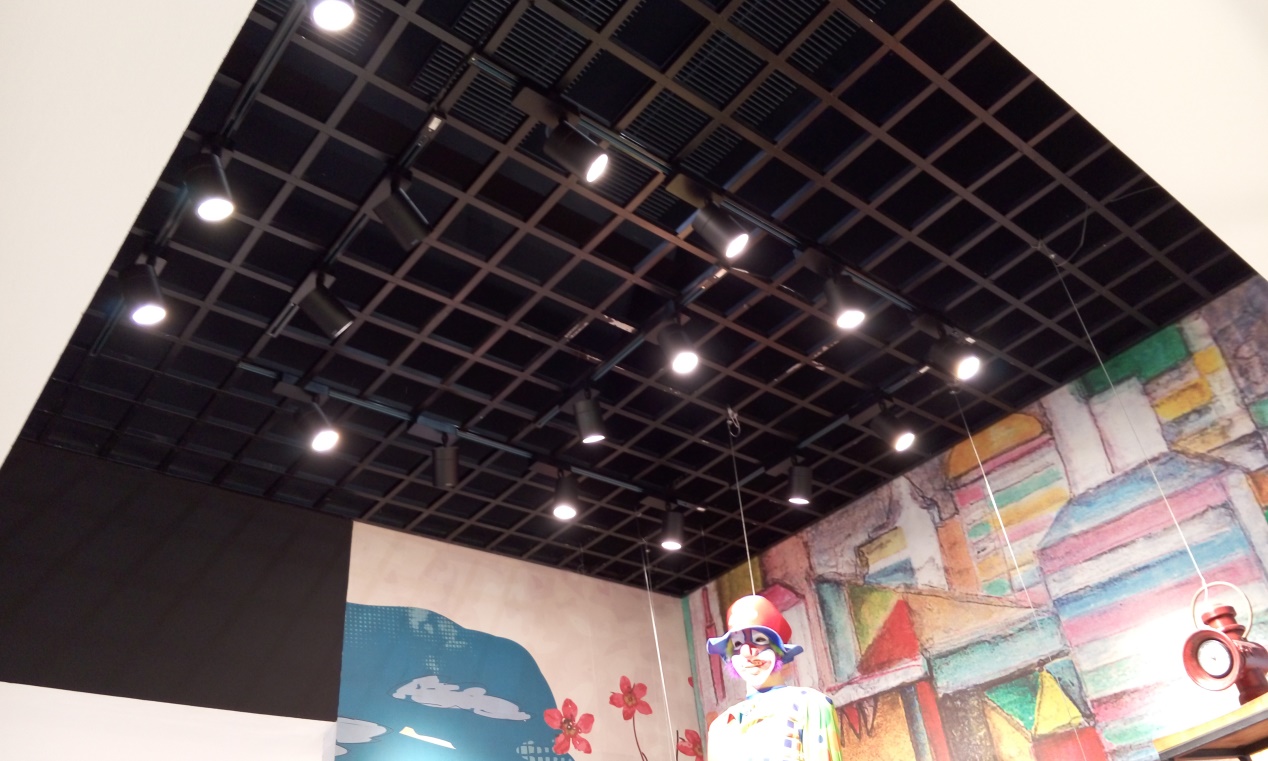

Case pictures:

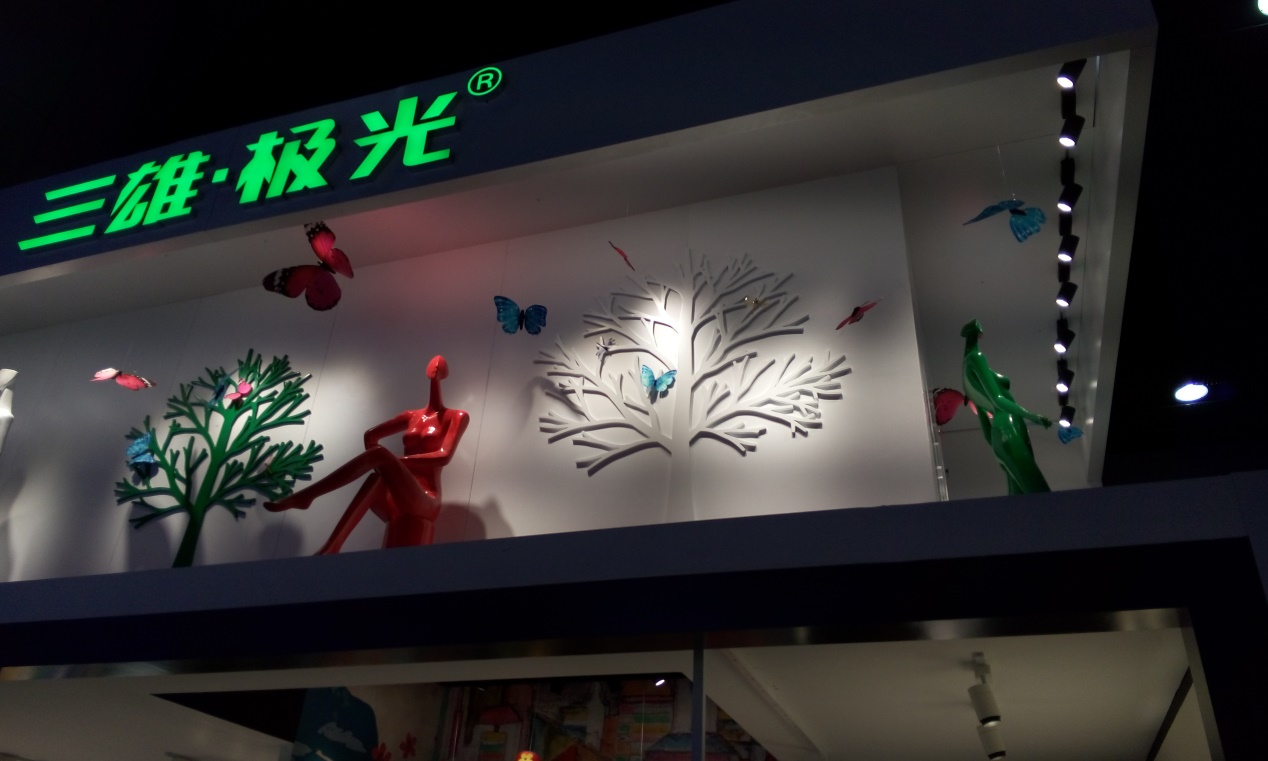

2019 Guangya Exhibition
Lens name: 5520 (3-angle zoom)
Applicable scene: museum, high-end fresh
5520 Zoom Lens

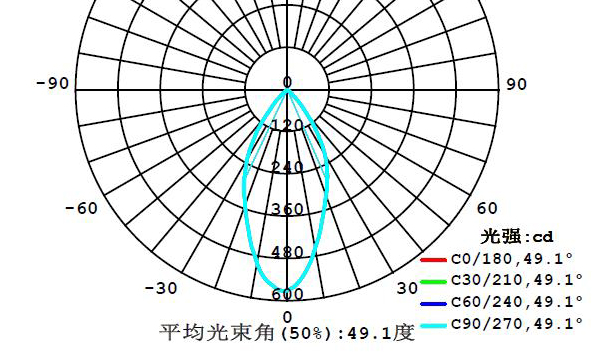

Lens light distribution curve
Lens parameters:
Diameter: Ø55 mm height: 20 mm
Trip: 18.5mm
Angle: 14 °-54 °
Material: PMMA
Efficiency: 75%
Product Code | FWHM | Material | Focusing distance |
2466 | 14°-54° | PMMA | 18.5mm |
