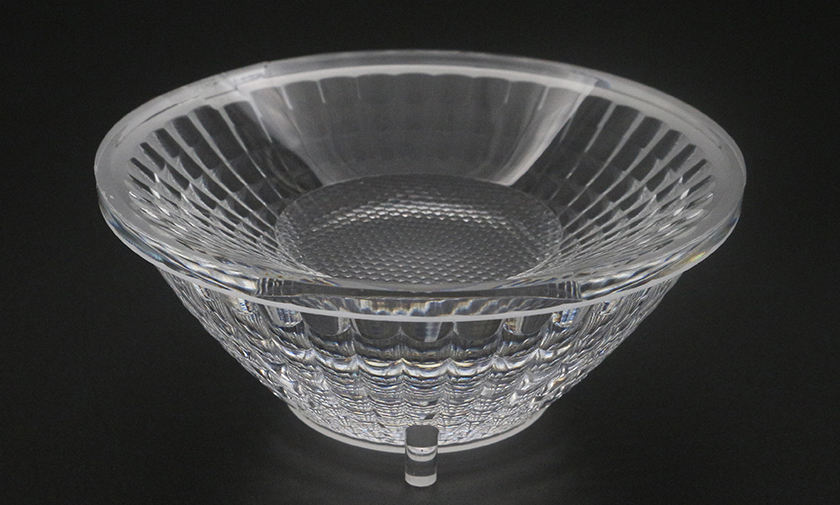

KA series lens


High center light intensity, low glare at the same angle, KA commercial light series

lenses have higher light intensity than other lenses, which is very suitable for lamps

with high light intensity requirements.


This series of lenses are smaller than other lenses when they are designed at the same

angle, which is very suitable for designing small-sized lamps.


There are full range of angles and sizes available.


Case pictures:

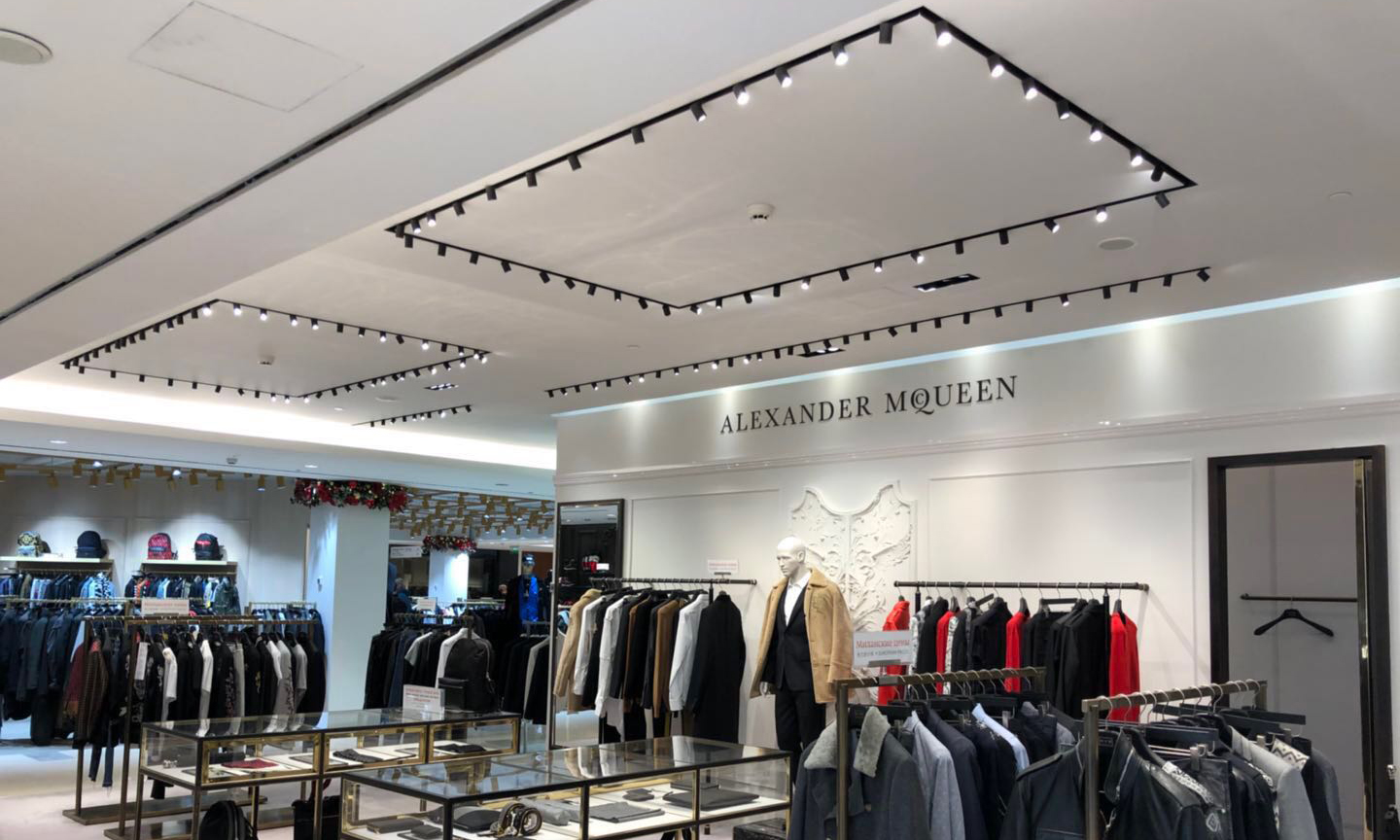

Alexander Mqueen 门店(图1)

                               Alexander Mqueen Store

                               Lens type: 7530 private mode (KA)

                               Applicable scenarios: clothing, accessories



Alexander Mqueen 门店(图2)

                                                lens:7530




                 Alexander Mqueen 门店(图3)

                                          Light distribution curve



Lens parameters:

diameter:Ø75 mm  height:30 mm

angle :12°/15°/18°/24°/38°/60°
material : PMMA,PC
effectiveness:88%



Product Code

FWHM

Material

0606

15°

PMMA

0741

15°

PMMA

1734

15°

PC

3054

15°

PC

0525

15°

PMMA

3271

15°

PMMA

1004

24°

PMMA

0742

24°

PMMA

1348

24°

PMMA

1393

38°

PMMA

1577

38°

PMMA

1463

60°

PMMA

2143

60°

PMMA
